Storefront Windows
Bring your world-class vision to life with hardwood storefront windows.
Creating an expansive window display with large, dramatic glass vistas, storefront windows from Duratherm can define a structure’s open design. To meet your project’s specifications fully, our premium hardwood storefront windows are rigorously tested for outstanding performance.
Click the links on the left to download product-specific details, specifications, and CAD files.
Data Sheets
All glazing is per project specifications. Duratherm can accommodate most configurations and make-ups from 1/8″ single glazed to a maximum of 1 3/4″ security glass.
Clear glass opening: Unit height minus 3 1/2″, unit width minus 3 1/2″.
The minimums and maximums shown are intended as guidelines. For applications that exceed these ranges, please contact the factory for assistance.
Width
Minimum: 8” or per glazing restrictions
Maximum: per glazing restrictions
Height
Minimum: 8” or per glazing restrictions
Maximum: per glazing restrictions
Frame Depths
Standard: 6¼”
Minimum*: 4”
Maximum: 10”
(*Contact factory for frame depths less than 6¼”)
Static Air Infiltration: | Allowed 0.30 Test Result 0.007 |
Water Infiltration: | Allowed 0.0 Test Result 0.0 |
Load Deflection: | Passed |
Sash Torsion: | N/A |
Vertical Deflection: | N/A |
Forced Entry: | N/A |
Large Missile Impact and Cyclical Air Pressure:
Note: Contact factory for size limitations and detail modification required for hurricane certified units. | Passed  |
Center of Glass: NFRC certified. | 1″: 0.29 with Argon: 0.24 |
Total Unit: | 1″: 0.33 with Argon: 0.29 |
Materials
At Duratherm, you have the flexibility to choose from an extensive selection of material options. We offer a full spectrum of wood choices for both the interior and exterior, along with a variety of powder-coated aluminum clad colors for the exterior.

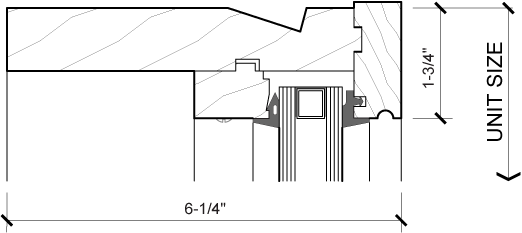

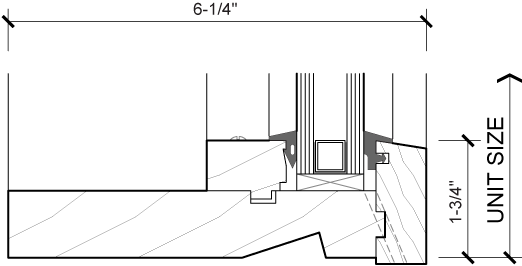

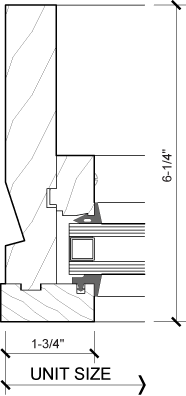

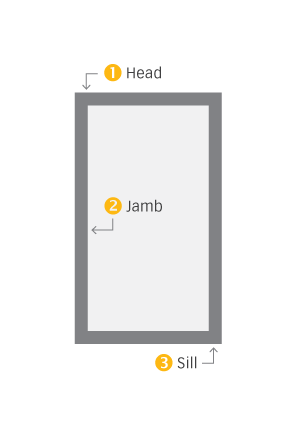

Storefront Details
Glazing Configurations
All types and configurations are available to use in Duratherm windows and doors. From single monolithic to triple glazing, laminated, curved-in-place, electrochromatic switchable – virtually any type or configuration commercially available – and perhaps even some that are not.
Glazing Methods
Dry Glazing
Specially developed extruded silicone gasket sets the glass by compression. Our proprietary system is long-lived, has low maintenance, and stays water resistant.
Wet Glazing
Our special silicone wet glazing compound bonds to the glass for long-lived sealing. Plus our continuous extruded silicone weatherstrip runs around the frame perimeter, and the seal is not compromised by seasonal expansion and contractions of the sash and frame.
