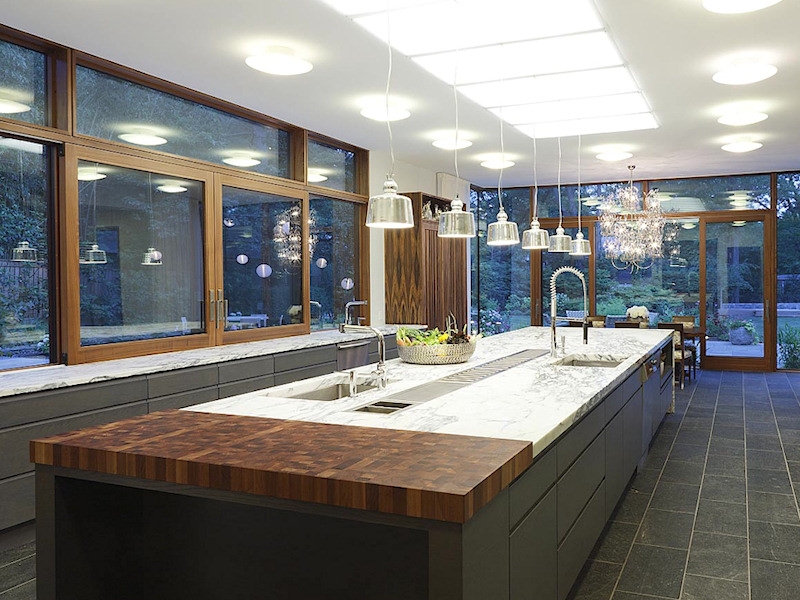

Lift/Roll Windows
Bring a room to life with dramatic lift roll windows.
While covering expansive openings, these customized hardwood windows easily lift and roll. Seamlessly blend indoor and outdoor living with lift roll windows engineered to exceed expectations and tested for performance excellence.
Click the links on the left to download product-specific details, specifications, and CAD files.
Data Sheets
Operating Assembly
Window sashes ride on carriages consisting of two sets of twin rollers mortised into the bottom of each moving sash. The sash is raised onto its carriage by rotating the operating lever handle 180°. Lifting gear connected to a tie rod transmits motion to the carriage, lifting sash. Based on G-U 933 or FFI Lift/Roll operating hardware.
Finishes:
- Internal carriage assembly (drive bars, wheel hub, shafts, rivets), lock kit, link rods, and connectors are zinc
- chromate coated steel or 304 stainless steel.
- Lock face and edge stile cover are clear anodized (EV-1) or dark bronze anodized (EV-5) aluminum.
- External guides and tracks are clear anodized (EV-1) or dark bronze anodized (EV-5) aluminum.
Egress: Properly-sized units meet egress requirements using standard hardware configuration.
Lever Handle
Standard handles are solid brass.
Finishes: Satin Nickel (US15), Polished Brass (US3), Satin Anodized Aluminum (US28).
Optional Hardware
Keyed locks.
3/4″ x 1/4″ tubular extruded frames set in wood frame surround. Extruded frames in anodized bronze, mill finish aluminum or custom color painted aluminum. Mesh of 18 x 16 screen cloth held with vinyl spline, available in charcoal finished aluminum, mill finish aluminum, stainless steel or bright brass. Maximum width of screen mesh is 72″.
X = Operable sash, O = Fixed sash, P = Pocket OX , OXXO , OXO , XP , PXXP
All glazing is per project specifications. Duratherm can accommodate most configurations and make-ups from 1/8″ single glazed to a maximum of 1″ security glass. Refer to the Glass and Glazing Guide in the Introduction section of this binder. Clear glass opening: Unit height minus 10 1/4″. For clear glass width, contact factory.
Double continuous extruded silicone flap gasket set in rebate around the perimeter of the sash. Engaging the lever handle compresses the weather-strip to ensure a tight seal.
The minimums and maximums shown are intended as guidelines. For applications that exceed these ranges, please contact the factory for assistance.
Width
Minimum: 36” for OX configuration.
Maximum: Maximum varies per configuration.
Height
Minimum: 36”
Maximum: 66″
Egress
For OX configuration, equal-sized sashes.
Based on:
20″ clear width
24″ clear height
5.7 sq ft clear opening
Minimum unit width: 50″
Minimum unit height: 36″
To meet egress requirements:
At minimum unit width of: 50″, height must be at least: 56″
At minimum unit height of: 36″, width must be at least: 61″
Frame Depths
Standard: 6 1/4”
Minimum*: 6 1/4”
Maximum: 10”
Static Air Infiltration: ASTM E283 cfm/ft2 @ 1.57 psf | Allowed 0.30 Test Result 0.05 |
Water Infiltration: ASTM E547-cyclic ASTM E331-static at 8 psf | Allowed 0.0 Test Result 0.0 |
Load Deflection: ASTM E330 10 sec at +60 and -60 psf | Passed |
Sash Torsion: AAMA/WDMA/CSA 101 / I.S.2 / A440 | N/A |
Vertical Deflection: AAMA/WDMA/CSA 101 / I.S.2 / A440 | N/A |
Forced Entry: ASTM F588 | Passed |
Center of Glass: | 1″: 0.29 with Argon: 0.24 |
Total Unit: | 1″: 0.33 with Argon: 0.29 |
Materials
At Duratherm, you have the flexibility to choose from an extensive selection of material options. We offer a full spectrum of wood choices for both the interior and exterior, along with a variety of powder-coated aluminum clad colors for the exterior.

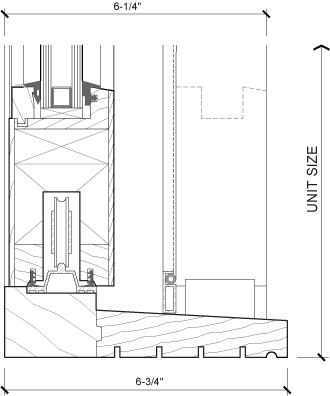

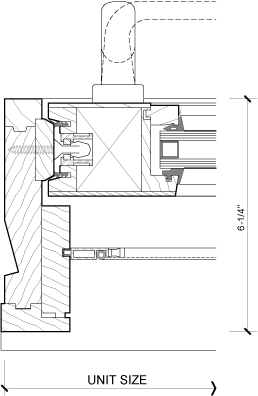

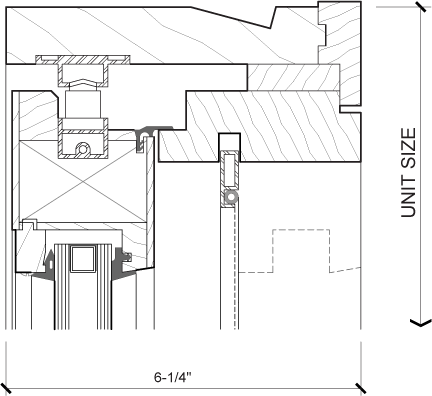

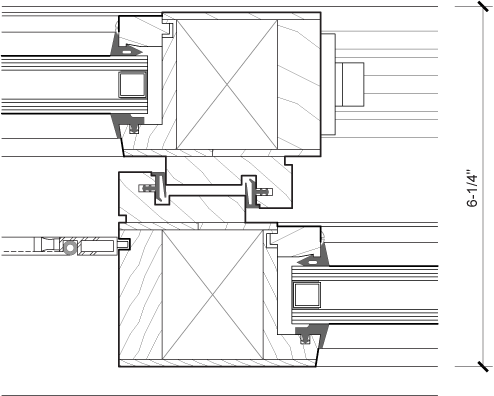

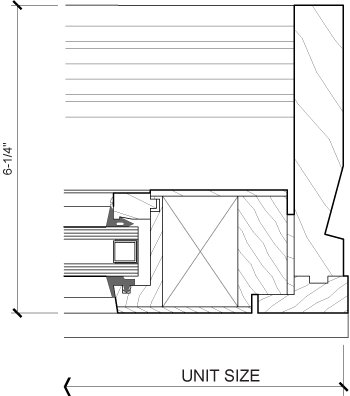

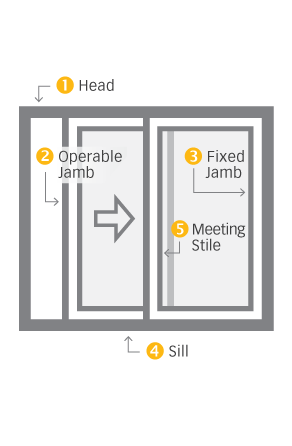

Lift/Roll Details
Glazing Configurations
All types and configurations are available to use in Duratherm windows and doors. From single monolithic to triple glazing, laminated, curved-in-place, electrochromatic switchable – virtually any type or configuration commercially available – and perhaps even some that are not.
Glazing Methods
Dry Glazing
Specially developed extruded silicone gasket sets the glass by compression. Our proprietary system is long-lived, has low maintenance, and stays water resistant.
Wet Glazing
Our special silicone wet glazing compound bonds to the glass for long-lived sealing. Plus our continuous extruded silicone weatherstrip runs around the frame perimeter, and the seal is not compromised by seasonal expansion and contractions of the sash and frame.
