Fixed Frame Windows

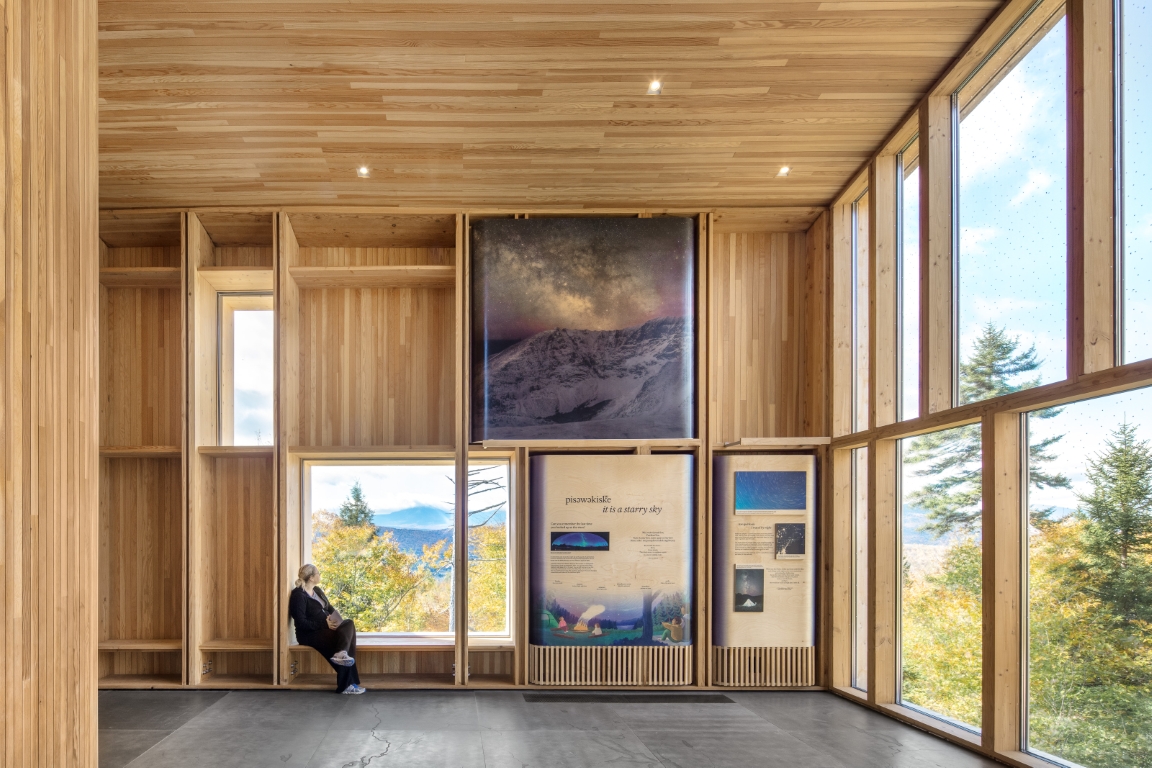

A fixed frame hardwood window, known commonly as a picture window, is a non-operable window that creates the appearance of a picture frame on the wall.
They are commonly installed as a single window or used in combinations with more functional window types creating a spectacular window wall. These hardwood windows are always custom built to your precise specifications to help bring your vision to life. Create a unique appearance from the interior and exterior with large and flat glass surfaces.
Click the links on the left to download product-specific details, specifications, and CAD files.
Data Sheets
All glazing is per project specifications. Duratherm can accommodate most configurations and make-ups from 1/8” single glazed to a maximum of 1 3/4” security glass.
Clear glass opening: Unit height minus 4 1/4”, unit width minus 3 1/2”.
The minimums and maximums shown are intended as guidelines. For applications that exceed these ranges, please contact the factory for assistance.
Width
Minimum: 8” or per glazing restrictions
Maximum: per glazing restrictions
Height
Minimum: 8” or per glazing restrictions
Maximum: per glazing restrictions
Frame Depths
Standard: 6¼”
Minimum*: 4”
Maximum: 10”
(*Contact factory for frame depths less than 6¼”)
Static Air Infiltration: ASTM E283 cfm/ft2 @ 1.57 psf | Allowed 0.30 Test Result 0.007 |
Water Infiltration: ASTM E547-cyclic ASTM E331-static at 8 psf | Allowed 0.0 Test Result 0.0 |
Load Deflection: ASTM E330 10 sec at +60 and -60 psf | Passed |
Sash Torsion: AAMA/WDMA/CSA 101 / I.S.2 / A440 | N/A |
Vertical Deflection: AAMA/WDMA/CSA 101 / I.S.2 / A440 | N/A |
Forced Entry: ASTM F588 | N/A |
Large Missile Impact and Cyclical Air Pressure:
Note: Contact factory for size limitations and detail modification required for hurricane certified units. modification required for hurricane certified units. | Passed  |
Center of Glass: ASTM C-236 U-value using Viracon VE1-2M Low E glass and Lawrence Berkeley Laboratories Window 5.2 analysis program. NFRC certified. | 1″: 0.29 with Argon: 0.24 |
Total Unit: | 1″: 0.33 with Argon: 0.29 |
Materials
At Duratherm, you have the flexibility to choose from an extensive selection of material options. We offer a full spectrum of wood choices for both the interior and exterior, along with a variety of powder-coated aluminum clad colors for the exterior.
Clad Exterior Options
Offering a clad exterior/wood interior offering on product. All available options, please see the RAL site for full selection. The shade may vary on actual product. Please contact Duratherm to discuss your custom needs.

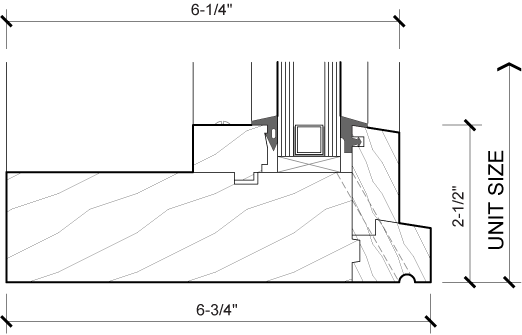

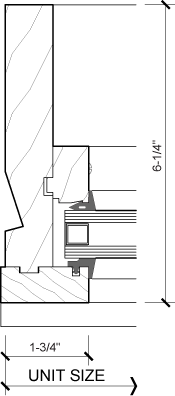

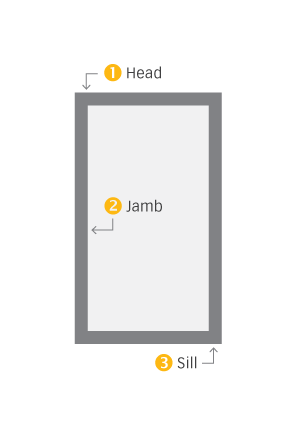

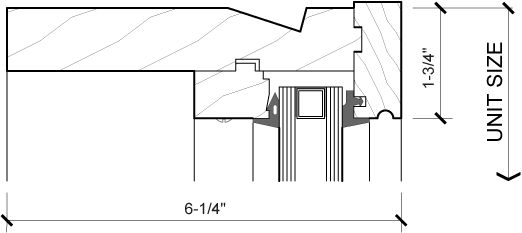

Fixed Frame Details
Glazing Configurations
All types and configurations are available to use in Duratherm windows and doors. From single monolithic to triple glazing, laminated, curved-in-place, electrochromatic switchable – virtually any type or configuration commercially available – and perhaps even some that are not.
Glazing Methods

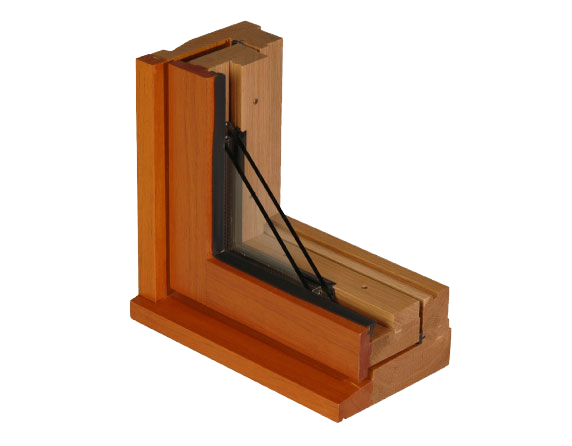

Dry Glazing
Specially developed extruded silicone gasket sets the glass by compression. Our proprietary system is long-lived, has low maintenance, and stays water resistant.

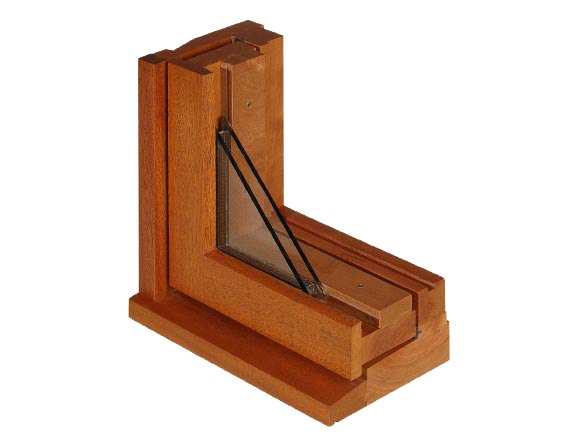

Wet Glazing
Our special silicone wet glazing compound bonds to the glass for long-lived sealing. Plus our continuous extruded silicone weatherstrip runs around the frame perimeter, and the seal is not compromised by seasonal expansion and contractions of the sash and frame.
