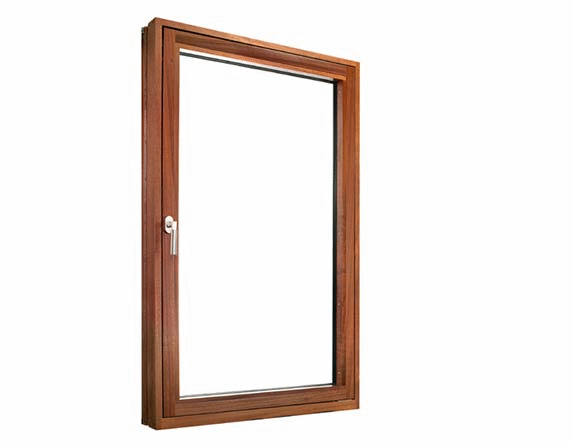

California Casement Windows

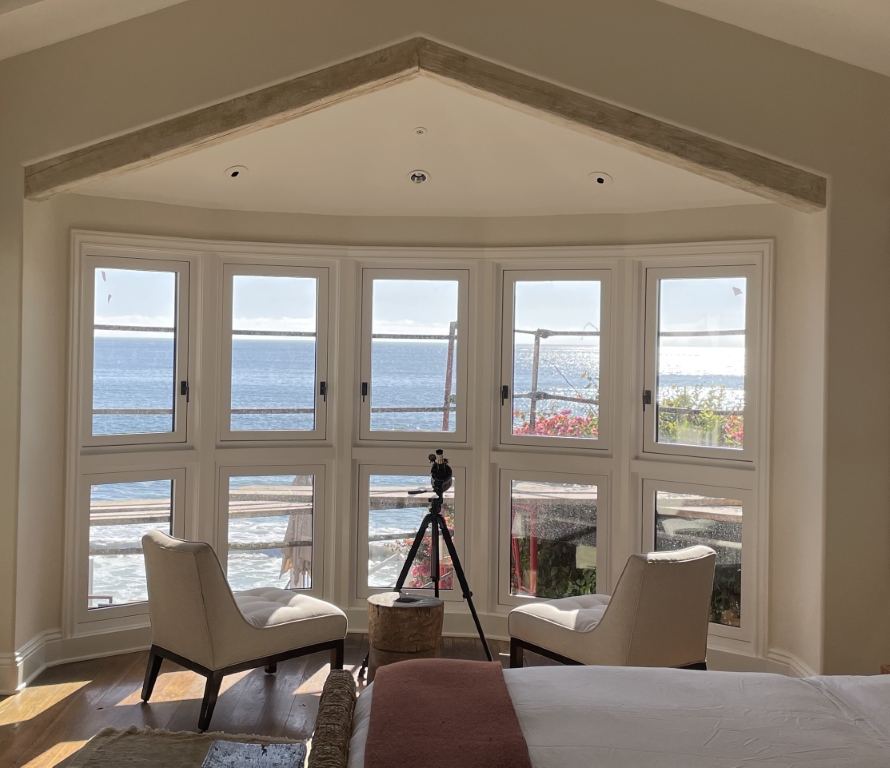

California casements are lever operated outswing windows with either exposed or concealed hinges.
Click the links on the left to download product-specific details, specifications, and CAD files.
Data Sheets
Operator
Multi-latchpoint fully-concealed locking hardware controlled by single lever handle control. Horizontal and vertical perimeter locking points ensure weather-tight performance and security. An adjustable friction stay holds window in any open position from 0° to 90°.
Lever Handle
Operating hardware accepts any lever handle with 43mm attachment spacing and 7mm sq. spindle. A wide variety of styles and finishes are available from various manufacturers.
Optional Hardware
Custodial locks, sash restrictors, removable operating handle.
1″ x ¼” tubular extruded frames in anodized bronze, mill finish aluminum or custom color painted aluminum. Mesh of 18 x 16 screen cloth held with vinyl spline, available in charcoal finished aluminum, mill finish aluminum, stainless steel or bright brass. Maximum width of screen mesh is 72″. Wood-framed screens are available.
All glazing is per project specifications. Duratherm can accommodate most configurations and make-ups from 1/8″ single glazed to a maximum of 1 3/4″ security glass.
Clear glass opening: Unit height minus 7 5/8″, unit width minus 6 7/8″.
Double continuous extruded silicone flap gasket set in rebate around the perimeter of the sash. Engaging the multilatchpoint espagnolettes compresses the weather-strip to ensure a tight seal.
Height
Minimum: 30”
Maximum: 96″
To ensure smooth and troublefree operation over time:
At maximum width of: 62″, limit height to: 60″
At maximum height of: 96″, limit width to: 36″
Maximum area for a single sash: 25 sq ft
Egress
Based on:
20″ clear width
24″ clear height
5.7 sq ft clear opening
Minimum unit width: 28″
Minimum unit height: 30″
To meet egress requirements:
At minimum unit width of: 28″, height must be at least: 48″
At minimum unit height of: 30″, width must be at least: 40″
Frame Depths
Standard: 6 1/4”
Minimum*: 4 3/4”
Maximum: 10”
(*Contact factory for frame depths less than 6¼”)
Static Air Infiltration: ASTM E283 cfm/ft2 @ 1.57 psf | Allowed 0.10 Test Result 0.005 |
Water Infiltration: ASTM E547-cyclic ASTM E331-static at 8 psf | Allowed 0.0 Test Result 0.0 |
Load Deflection: ASTM E330 10 sec at +60 and -60 psf | Passed |
Sash Torsion: AAMA/WDMA/CSA 101 / I.S.2 / A440 | Passed |
Vertical Deflection: AAMA/WDMA/CSA 101 / I.S.2 / A440 | Passed |
Forced Entry: ASTM F588 | Passed |
Center of Glass: | 1″: 0.29 with Argon: 0.24 |
Total Unit: | 1″: 0.34 with Argon: 0.30 |
Large Missile Impact and Cyclical Air Pressure:
Note: Contact factory for size limitations and detail modification required for hurricane certified units. | Passed  |
Materials
At Duratherm, you have the flexibility to choose from an extensive selection of material options. We offer a full spectrum of wood choices for both the interior and exterior, along with a variety of powder-coated aluminum clad colors for the exterior.
Clad Exterior Options
Offering a clad exterior/wood interior offering on product. All available options, please see the RAL site for full selection. The shade may vary on actual product. Please contact Duratherm to discuss your custom needs.

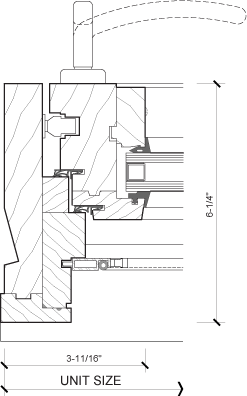

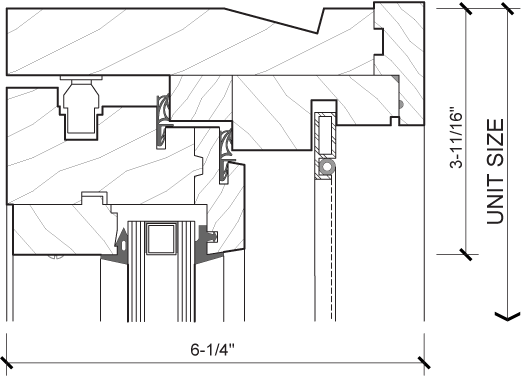

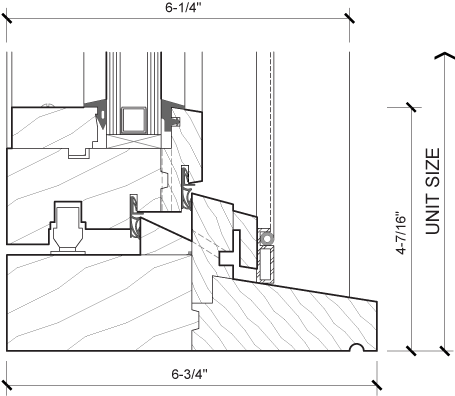

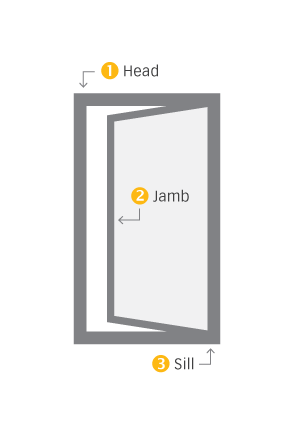

California Casement Details
Glazing Configurations
All types and configurations are available to use in Duratherm windows and doors. From single monolithic to triple glazing, laminated, curved-in-place, electrochromatic switchable – virtually any type or configuration commercially available – and perhaps even some that are not.
Glazing Methods
Dry Glazing
Specially developed extruded silicone gasket sets the glass by compression. Our proprietary system is long-lived, has low maintenance, and stays water resistant.
Wet Glazing
Our special silicone wet glazing compound bonds to the glass for long-lived sealing. Plus our continuous extruded silicone weatherstrip runs around the frame perimeter, and the seal is not compromised by seasonal expansion and contractions of the sash and frame.
