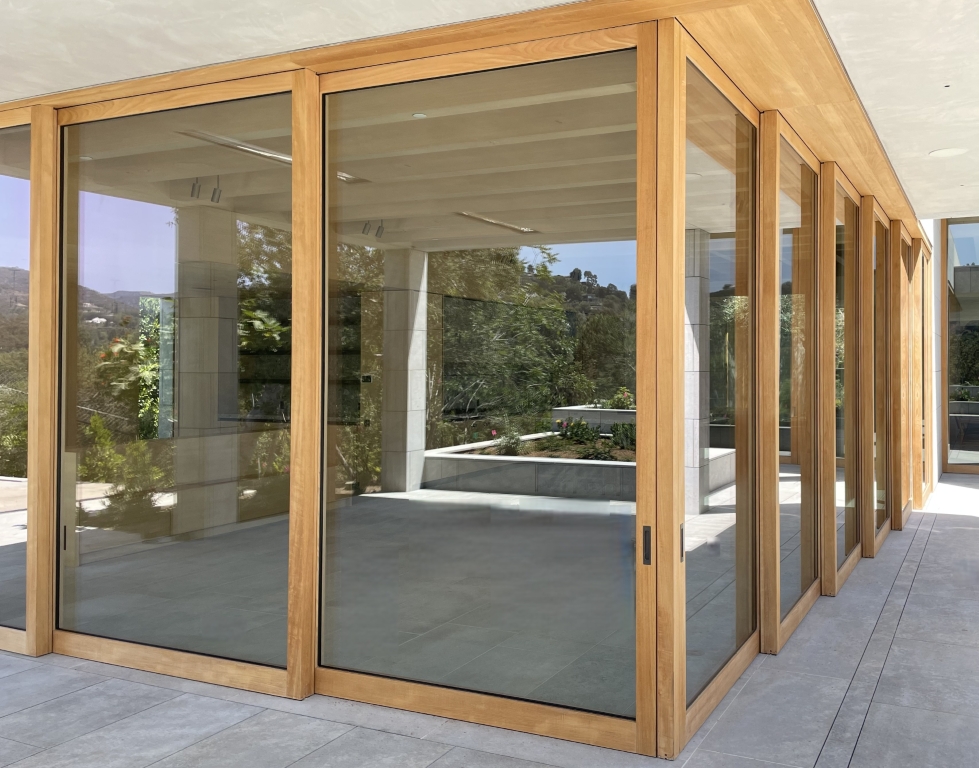

Lift/Roll Doors
Quality construction, thermal integrity and ease of use are standard characteristics of our lift and slide doors.
Our hardwood frames create strength and durability. Our custom hardware is engineered to provide almost effortless movement — even in the heaviest constructions — by lifting the door onto its carriage and rolling or sliding the panels to open. The hardware also allows for positive stopping at all intermediate openings. Custom built to any size your designs call for, these doors instantly become a signature in the homes and buildings where they are used.
Click the links on the left to download product-specific details, specifications, and CAD files.
Data Sheets
All glazing is per project specifications. Duratherm can accommodate most configurations and make-ups from 1/8″ single glazed to a maximum of 1″ security glass.
Clear glass opening: Unit height minus 14 1/8″. For clear glass width, contact factory.
X = Operable panel, O = Fixed panel, P = Pocket
Lift/Roll: OX , OXXO , XX , OXX , XXXX , OXO , XXX , OXXXXO
Pocket: PX , PXXP , PXX , PXXXXP
All glazing is per project specifications. Duratherm can accommodate most configurations and make-ups from 1/8″ single glazed to a maximum of 1″ security glass.
Clear glass opening: Unit height minus 15 5/8″, unit width minus 14 1/2″.
Doubled, continuous extruded silicone flap gasket set in rebate around the perimeter of the door leaf. Rotating the multi-latchpoint lever handle lowers the door and compresses the weather-strip to ensure a tight seal.
The minimums and maximums shown are intended as guidelines. For applications that exceed these ranges, please contact the factory for assistance.
Width
Minimum: 48” for OX configuration.
Maximum: varies per configuration.
Height
Minimum: 74”
Maximum: 120″
ADA Compliance
Clear-opening sizing assumes a two panel OX configuration with equal sized panels and is based on 32″ clear width requirement.
Minimum unit width: 70″
NOTE: Standard wood threshold may not meet ADA maximum height requirements.
Consult factory with specific clearance questions
Frame Depths/Leaf Thickness
Standard primary door leaf thickness: 2 1/2″
Standard screen door leaf thickness: 1 3/8″

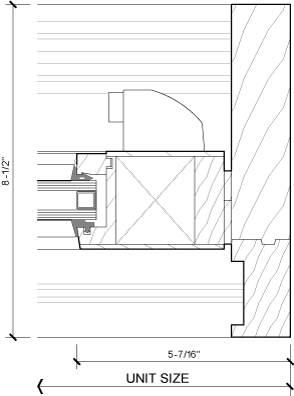

Standard frame depth *: 8 1/2″ (OX configuration with screen door)
Minimum frame depth *: 6 1/4″ (OX configuration without screen door)
Maximum frame depth: varies by configuration.
* Contact factory for frame depths less than 6¼”.
Static Air Infiltration: ASTM E283 cfm/ft2 @ 1.57 psf | Allowed 0.30 Test Result 0.05 |
Water Infiltration: ASTM E547-cyclic ASTM E331-static at 8 psf | Allowed 0.0 Test Result 0.0 |
Load Deflection: ASTM E330 10 sec at +60 and -60 psf | Passed |
Sash Torsion: AAMA/WDMA/CSA 101 / I.S.2 / A440 | N/A |
Vertical Deflection: AAMA/WDMA/CSA 101 / I.S.2 / A440 | N/A |
Forced Entry: ASTM F588 | Passed |
Center of Glass: NFRC certified. | 1″: 0.29 with Argon: 0.24 |
Total Unit: | 1″: 0.33 with Argon: 0.29 |
Large Missile Impact and Cyclical Air Pressure:
Note: Contact factory for size limitations and detail modification required for hurricane certified units. | Passed  |
Materials
At Duratherm, you have the flexibility to choose from an extensive selection of material options. We offer a full spectrum of wood choices for both the interior and exterior, along with a variety of powder-coated aluminum clad colors for the exterior.

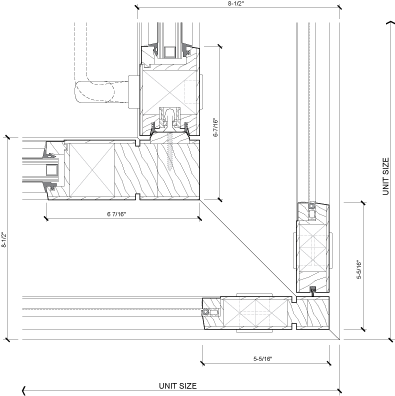

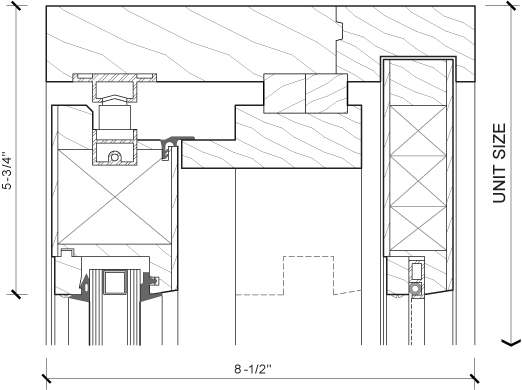

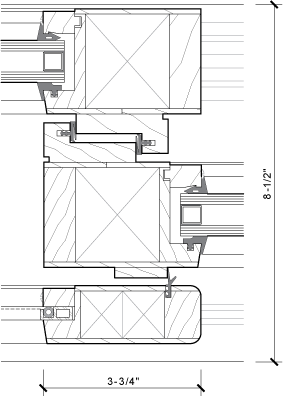

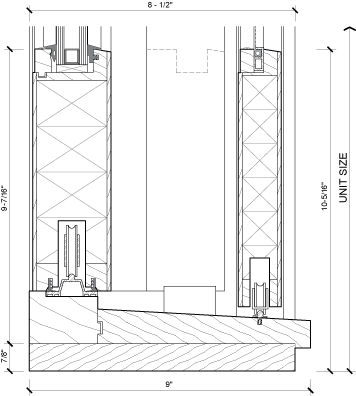

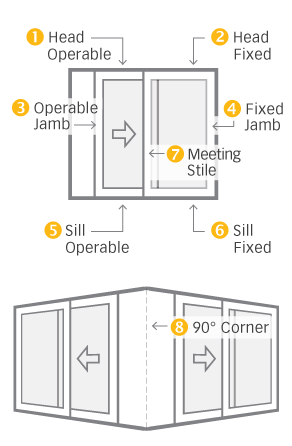

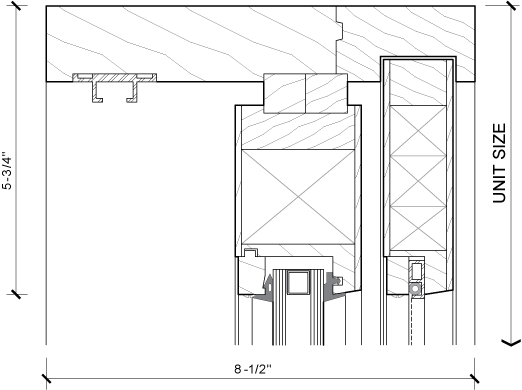

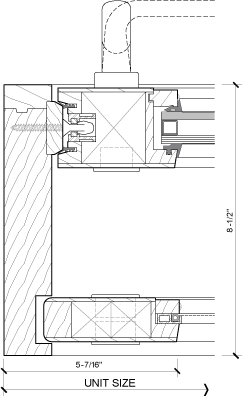

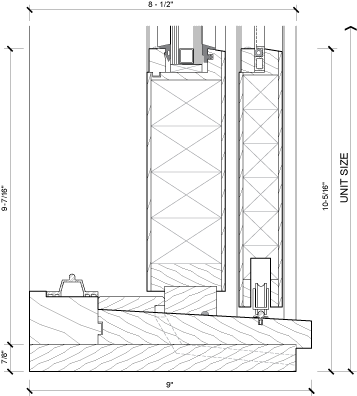

LIft & Slide Details
Glazing Configurations
All types and configurations are available to use in Duratherm windows and doors. From single monolithic to triple glazing, laminated, curved-in-place, electrochromatic switchable – virtually any type or configuration commercially available – and perhaps even some that are not.
Glazing Methods
Dry Glazing
Specially developed extruded silicone gasket sets the glass by compression. Our proprietary system is long-lived, has low maintenance, and stays water resistant.
Wet Glazing
Our special silicone wet glazing compound bonds to the glass for long-lived sealing. Plus our continuous extruded silicone weatherstrip runs around the frame perimeter, and the seal is not compromised by seasonal expansion and contractions of the sash and frame.
