Inswing Exterior Doors
Featuring precision joinery and exceptional attention to detail, our inswing exterior doors are works of art.
These inswing doors deliver the impact resistance, thermal integrity and unrivaled beauty that our architects’ visions require.Made in a variety of wood species and with simple-to-operate Duratherm hardware, our inswing exterior doors can accommodate almost any opening size.
Click the links on the left to download product-specific details, specifications, and CAD files.
Data Sheets
Primary Door Lockset
Heavy duty mortise construction. Half-turn lever controls hook bolts, dead bolt, and latch. Hook bolt assembly fully mortised into rail to provide 3- or 4-point latching at frame and adjacent door/frame. Locking mechanism incorporates a standard US cylinder. Based on G-U Cremona or Tripact door bolt system.
Finishes: Yellow Dichromate or black powder coated steel. Cremona locksets are available in stainless steel.
Screen Door Lockset
Heavy duty mortise construction. Single doors have mortised lockset. Paired screen doors have mortised lockset on active leaf, dummy handle and top & bottom shoot bolts on inactive leaf. Based on G-U Monolock operating hardware.
Finishes: Yellow Dichromate or black powder coated steel. Faceplate available in stainless steel.
Escutcheons / Lever Handles
Escutcheons, roses, and lever handles are available in a variety of styles and configurations from various manufacturers. Finishes: A variety of finishes are available from various manufacturers.
Hinges
Solid brass five-knuckle ball-bearing butt hinges, minimum 1 1/2 pair per leaf, in manufacturer’s standard finishes.
Primary Door: 4 1/2″ x 4 1/2″ Screen Door: 3 1/2″ x 3 1/2″
Most commercial hardware can be incorporated into our door panels, including flush bolts, exit devices (rim, mortise, surface vertical rod and concealed vertical rod), door closers, electric strikes, and others.
NOTE: Some hardware installations may require modifications to door leaf or frame detailing, such as concealed closers and meeting rail weather-strip at concealed vertical rod assemblies. Contact factory for assistance. Hardware must be suitable for our standard 2 1/4” leaf thickness.
Screen doors, astragals, ADA-compliant metal thresholds
All glazing is per project specifications. Duratherm can accommodate most configurations and make-ups from 1/8″ single glazed to a maximum of 1″ security glass.
Clear glass opening: Unit height minus 15 1/2″, unit width minus 12″.
Continuous extruded silicone flap gasket set in rebate in door frame around perimeter of door panel. Engaging the multi-latchpoint espagnolettes (standard hardware) compresses the weather-strip to ensure a tight seal.
The minimums and maximums shown are intended as guidelines. For applications that exceed these ranges, please contact the factory for assistance.
Width
Minimum: 24”
Maximum: 48″
Height
Minimum: 74”
Maximum: 120″
ADA Compliance
Clear-opening sizing based on 32″ clear width requirement.
Minimum unit width: 35 1/2″ (assuming 180° door swing)
NOTE: Standard wood threshold may not meet ADA maximum height requirements. Doors that are not able to open a full 180° may need to increase in width.
Consult factory with specific clearance questions
Frame Depths/Leaf Thickness
Standard primary door leaf thickness: 2 1/4″
Standard screen door leaf thickness: 1 3/8″
Standard frame depth *: 6 1/4″
Minimum frame depth *: 4 3/4″
Maximum frame depth: 10″
* Contact factory for frame depths less than 6¼”.
NOTE: When screen doors are specified, handle clearances must be considered when determining appropriate frame depths.
Static Air Infiltration: ASTM E283 cfm/ft2 @ 6.24 psf | Allowed 0.30 Test Result 0.02 |
Water Infiltration: ASTM E547-cyclic ASTM E331-static at 8 psf | Allowed 0.0 Test Result 0.0 |
Load Deflection: ASTM E330 10 sec at +60 and -60 psf | Passed |
Sash Torsion: AAMA/WDMA/CSA 101 / I.S.2 / A440 | N/A |
Vertical Deflection: AAMA/WDMA/CSA 101 / I.S.2 / A440 | N/A |
Forced Entry: ASTM F588 | Passed |
Center of Glass: NFRC certified. | 1″: 0.29 with Argon: 0.24 |
Total Unit: | 1″: 0.34 with Argon: 0.30 |
Large Missile Impact and Cyclical Air Pressure:
Note: Contact factory for size limitations and detail modification required for hurricane certified units. | Passed  |
Materials
At Duratherm, you have the flexibility to choose from an extensive selection of material options. We offer a full spectrum of wood choices for both the interior and exterior, along with a variety of powder-coated aluminum clad colors for the exterior.
Clad Exterior Options
Offering a clad exterior/wood interior offering on product. All available options, please see the RAL site for full selection. The shade may vary on actual product. Please contact Duratherm to discuss your custom needs.

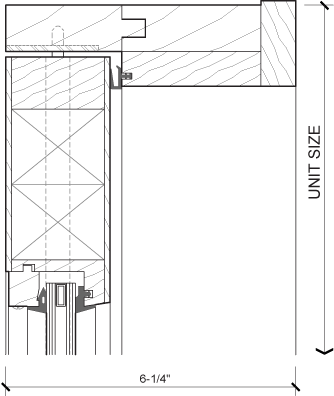

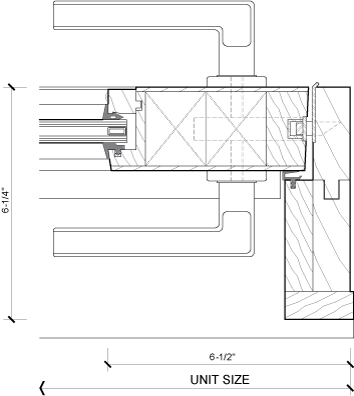

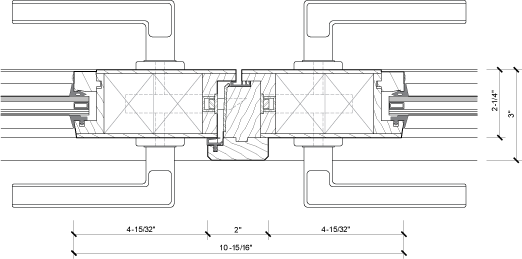

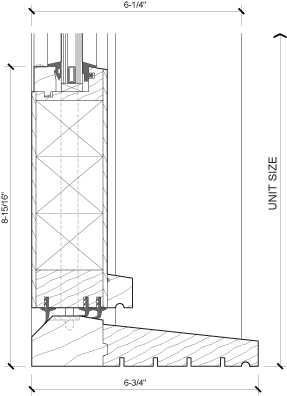

Inswing Details
Glazing Configurations
All types and configurations are available to use in Duratherm windows and doors. From single monolithic to triple glazing, laminated, curved-in-place, electrochromatic switchable – virtually any type or configuration commercially available – and perhaps even some that are not.
Glazing Methods
Dry Glazing
Specially developed extruded silicone gasket sets the glass by compression. Our proprietary system is long-lived, has low maintenance, and stays water resistant.
Wet Glazing
Our special silicone wet glazing compound bonds to the glass for long-lived sealing. Plus our continuous extruded silicone weatherstrip runs around the frame perimeter, and the seal is not compromised by seasonal expansion and contractions of the sash and frame.
